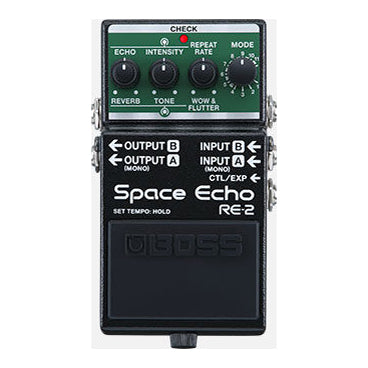

BOSS RE-2 Space Echo Compact Pedal

Introduced in 1974 and produced for over 14 years, the Roland RE-201 Space Echo stands among the most legendary and sought-after effect units in music history. Known for its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks, this tape-based classic continues to inspire musicians, producers, and audio mixers over four decades on.

With the RE-2, the authentic sound and behavior of the Space Echo is now available in the famous BOSS compact series for the first time. Backed by intensive R&D and our latest innovations, the RE-2 delivers the coveted magic of the RE-201 in a pedalboard-friendly footprint—realized in flawless detail by the company that designed the original.

• Authentic sound and behavior of the legendary Roland RE-201 Space Echo in a BOSS compact pedal
• Classic multi-head tape echo sound with expanded delay time
• Original three-head configuration and 11 different sound combinations
• Vintage RE-201 spring reverb sound with modern stereo operation
• Wow & Flutter control for introducing varying levels of natural tape modulation
• Twist effect with footswitch control
• Select between the unprocessed analog dry signal or the modeled sound of the original Space Echo preamp
• Tap tempo and carryover functions
• True stereo input and output
• Expandable control via external footswitches or an expression pedal
• BOSS five-year warranty

RE-201 Space Echo: Simply Legendary

When tape-based echoes were standard in the music world, the RE-201 was a leader in its class. Equipped with three evenly spaced tape heads and a spring reverb tank, it could produce everything from clean, single delays to dense, rhythmic echoes and ambient washes. The RE-201’s appealing sound was influenced by many factors, from the warm compression of magnetic tape saturation to the evolving modulation produced by motor speed fluctuations, friction, and other elements. Last but not least, analog preamp circuitry was a key ingredient in the Space Echo’s rich sonic recipe.

A Masterpiece Reborn

In developing the RE-2 and its big brother, the RE-202, BOSS engineers have fully reproduced all the complex, non-linear behaviors that contribute to the RE-201’s immortal character. We carefully analyzed several vintage RE-201s, including a pristine original unit from the BOSS and Roland factory archive. Everything that influences the sound has been recreated with all-new algorithms, including the tape path, record/playback mechanism, motor variations, preamp coloration, spring reverb character, and more.

Journey to Deep Space

The RE-2 squeezes the complete sonic character of the RE-201 into the classic BOSS compact pedal format. The 11-position mode selector lets you dial in different virtual tape heads with or without spring reverb, and you can balance the echo/reverb blend with independent level knobs. Every behavior is accurately replicated, such as the gradual pitch change that occurs with Repeat Rate tweaks and the runaway feedback that happens when maxing the Intensity knob. And with the expressive Wow & Flutter control, you can conjure all the natural modulation characteristics that are essential to the Space Echo sound.

Built for Modern Players

The RE-2 takes the Space Echo experience further with versatile features for today’s music. Delay time has been doubled and tap tempo control is supported, and there’s a cool Twist function for creating evocative special effects as you perform. For the dry sound, you can choose between the warm and fat RE-201 preamp tone or a clean signal with zero processing. Full stereo I/O is available, and it’s possible to mute the dry signal for parallel effect setups and studio use. The RE-2 also supports expanded control via external footswitches or an expression pedal, including continuous pedal control of multiple panel functions at once.

Specifications

Modes

11 modes

Nominal Input Level

INPUT A(MONO), INPUT B: -20 dBu

Maximum Input Level

INPUT A(MONO), INPUT B: +7 dBu

Input Impedance

INPUT A(MONO), INPUT B: 1 M ohm

Nominal Output Level

OUTPUT A(MONO), OUTPUT B: -20 dBu

Maximum Output Level

OUTPUT A(MONO), OUTPUT B: +7 dBu

Output Impedance

OUTPUT A(MONO), OUTPUT B: 1 k ohm

Recommended Load Impedance

OUTPUT A(MONO), OUTPUT B: 10 k ohms or greater

Bypass

Buffered bypass

Controls

MODE knob
REPEAT RATE knob
WOW & FLUTTER knob
INTENSITY knob
TONE knob
ECHO knob
REVERB knob
CARRYOVER switch
Pedal switch

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT A(MONO) jack, INTPUT B jack, OUTPUT A(MONO) jack, OUTPUT B jack: 1/4-inch phone type
CTL/EXP jack: 1/4-inch TRS phone type
DC IN jack

Power Supply

Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

75 mA

Expected battery life under continuous use

Alkaline: Approx. 4.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61)

Options (sold separately)

AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

450 g
1 lb

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
