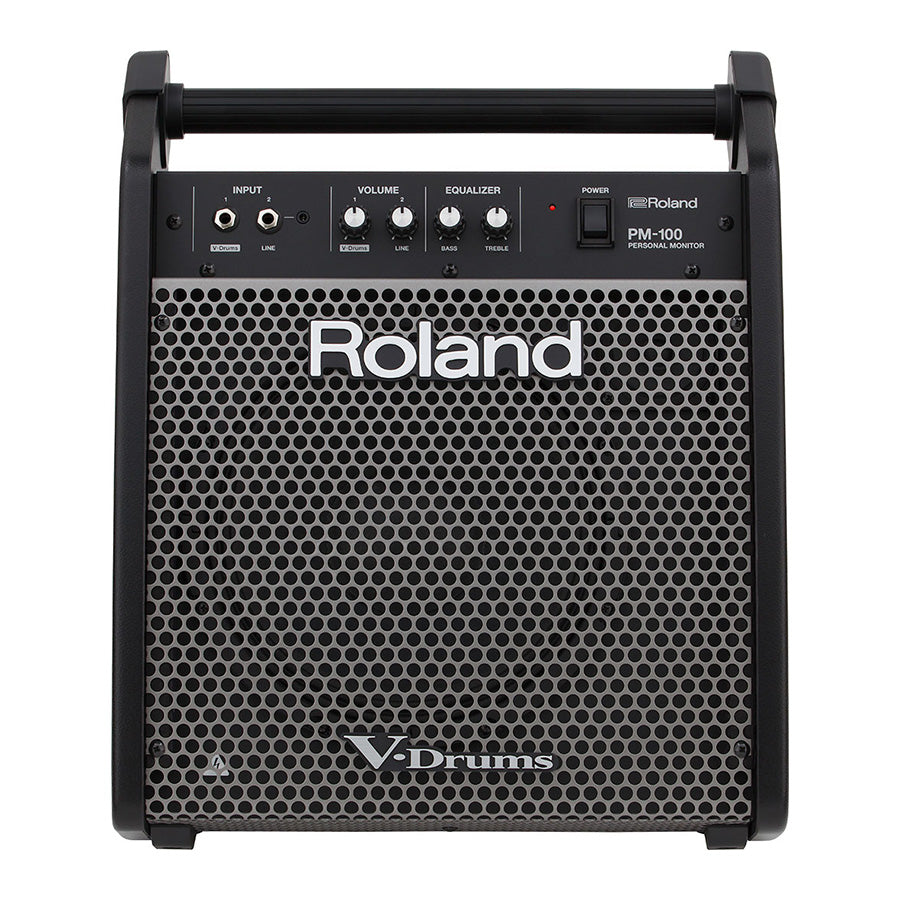

ROLAND PM-100 Personal Monitor 80w 1x10 Drum Monitor

Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.

• Premium all-in-one monitor designed for use with V-Drums electronic percussion products
• Full-range audio system with 80 watts of power, custom 10-inch speaker, and tweeter
• Angled design provides ideal sound coverage for the seated player
• Integrated mixer with independent volume controls and global EQ
• Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
• Unique full-width bar handle for easy floor adjustment and carrying convenience

Pro-Level Sound for Playing V-Drums

The PM-100 is the perfect complement to any V-Drums set. Its compact size is ideal for playing at home, and the powerful custom speaker system delivers rich, full-range sound with inspiring punch and presence. The front face is angled for optimal sound monitoring while seated at the V-Drums, and a full-width bar handle on top offers a convenient way to carry the monitor and adjust its floor position.

Versatile Onboard Mixing

With its integrated mixer, the PM-100 allows you to monitor backing music and external devices along with your kit. There’s a dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players. Independent volume controls are provided for the V-Drums and line input sections, and there’s also a two-band equalizer for shaping the overall sound.

Specifications

Rated Power Output

80 W

Nominal Input Level

V-Drums INPUT: -6 dBu (10 k ohms)
LINE INPUT: -6 dBu (10 k ohms)

Speaker

25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1

Controls

POWER switch
V-Drums VOLUME knob
LINE INPUT VOLUME knob
BASS knob
TREBLE knob

Indicators

POWER

Connectors

V-Drums INPUT jack: Stereo 1/4-inch phone type
LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
AC IN jack

Power Consumption

36 W

Accessories

Owner's manual
Power cord

Size and Weight

Width

388 mm
15-5/16 inches

Depth

407 mm
16-1/16 inches

Height

354 mm
13-15/16 inches

Weight

13.5 kg
29 lbs 13 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
