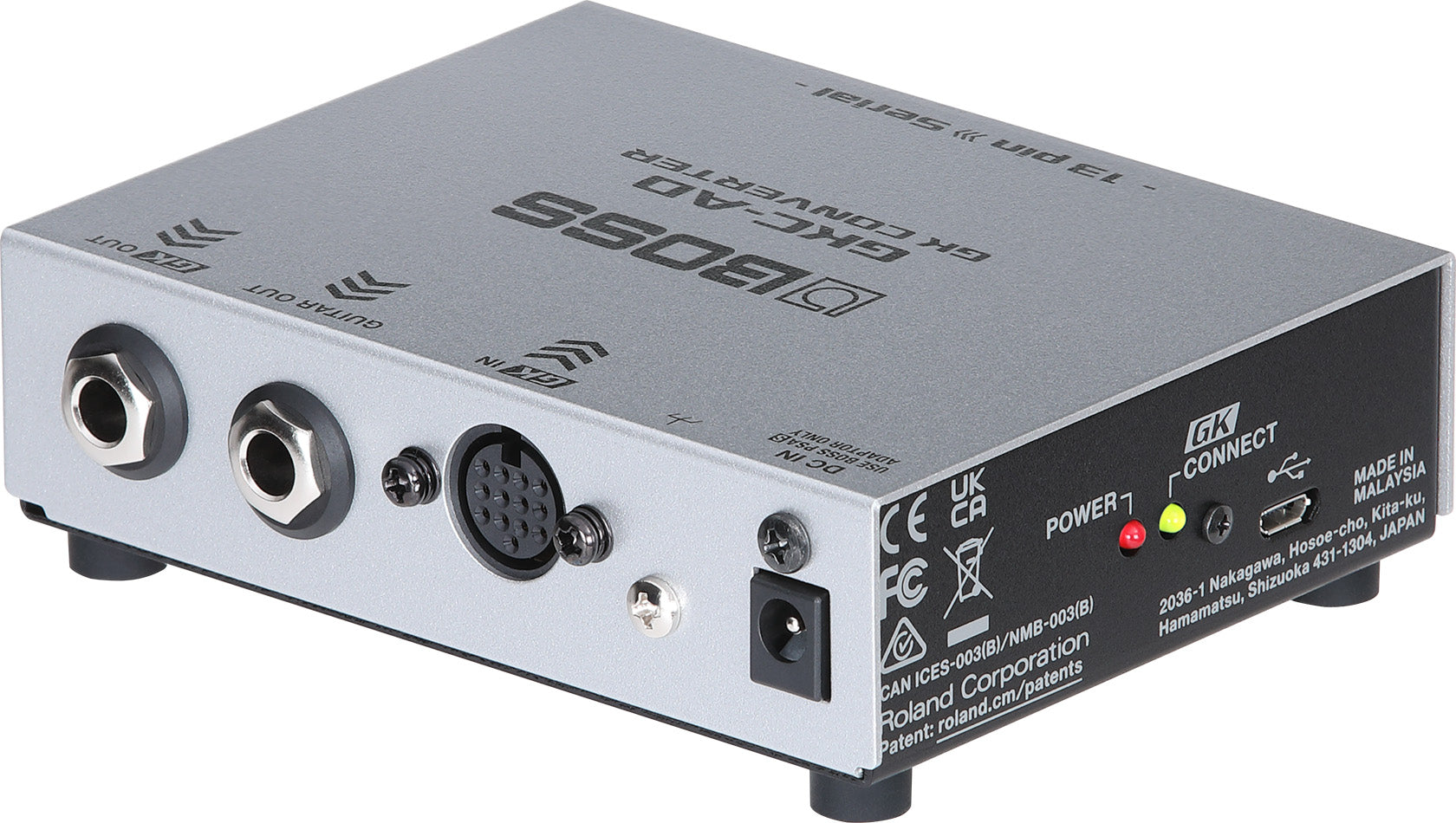

BOSS GKC-AD Electric Guitar Convertor

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output.

• Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
• 13-pin GK input and Serial GK output
• Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
• Compact and rugged metal design

Supported Products

The GKC-AD enables you to use the GK-3/GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output with the following products:

BOSS Products

• GM-800 Guitar Synthesizer

Specifications

Connectors

GK IN connector: 13 pins DIN type
GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
GUITAR OUT jack: 1/4-inch phone type
DC IN jack
USB port: USB Micro-B (program update only)

Nominal Output Level

GUITAR OUT: -10 dBu

Recommended Load Impedance

GUITAR OUT: 10 k ohms or greater

Indicators

GUITAR IN: 1 M ohm

Indicators

POWER indicator
GK CONNECT indicator

Current Draw

240 mA

Power Supply

AC adaptor

Accessories

AC adaptor
Owner’s Manual
Leaflet “USING THE UNIT SAFELY“

Options (sold separately)

Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)

Size and Weight

Width

115 mm
4-17/32 inches

Depth

92 mm
3-5/8 inches

Height

36 mm
1-7/16 inches

Weight

340 g
12 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
