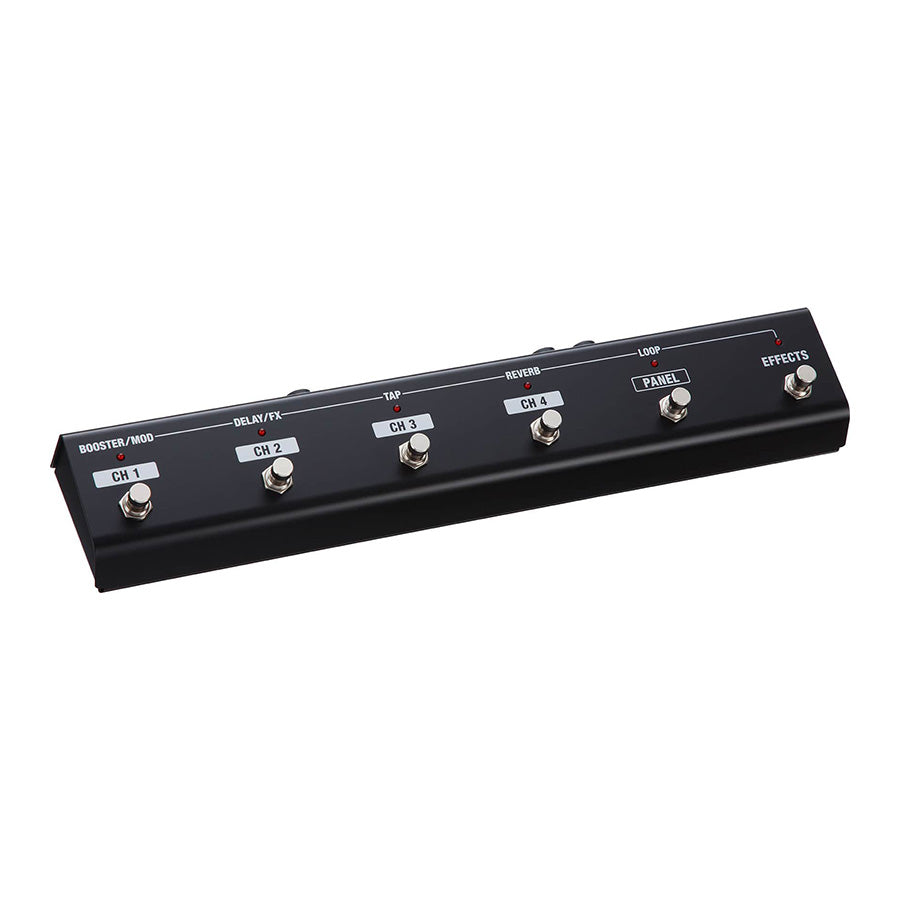

BOSS GA-FC Foot Controller

If you want to keep your hands on your axe at all times, the GA-FC Foot Controller lets you drive Roland and BOSS amps from the floor. It allows for expansion as well: plug in optional expression pedals etc.

• Switch instantly between four channels and two routes of loops, reverbs, boost settings, etc.
• Simultaneously connect two expression pedals* for realtime control of volume and drive

  Compatible products: Blues Cube Artist, Blues Cube Artist212, Blues Cube Tour, KATANA-100 MkII, KATANA-100/212 MkII, KATANA-HEAD MkII, KATANA-Artist MkII, Acoustic Singer Pro, Acoustic Singer Live, Nextone Artist, Nextone Stage, Nextone Special, WAZA Tube Amp Expander

  *EV-5, FV-500L, and FV-500H are available as optional expression pedals for the GA-FC.

Controls

FUNCTION switch
MANUAL switch
CH 1?CH 4 switches

Indicators

FUNCTION
MANUAL
CH 1?CH 4

Connectors

EXP PEDAL DRIVE jack (1/4-inch TRS phone type)
EXP PEDAL VOLUME jack (1/4-inch TRS phone type)
GA FOOT CONTROL jack (1/4-inch TRS phone type)

Accessory

Owner's Manual
Foot Controller Cable

Options (sold separately)

Expression Pedal (EV-5, BOSS FV-500L, BOSS FV-500H)

Size and Weight

Width

392 mm
15-7/16 inches

Depth

81 mm
3-1/4 inches

Height

49 mm
1-15/16 inches

Weight

1.0 kg
2 lbs. 4 oz.
