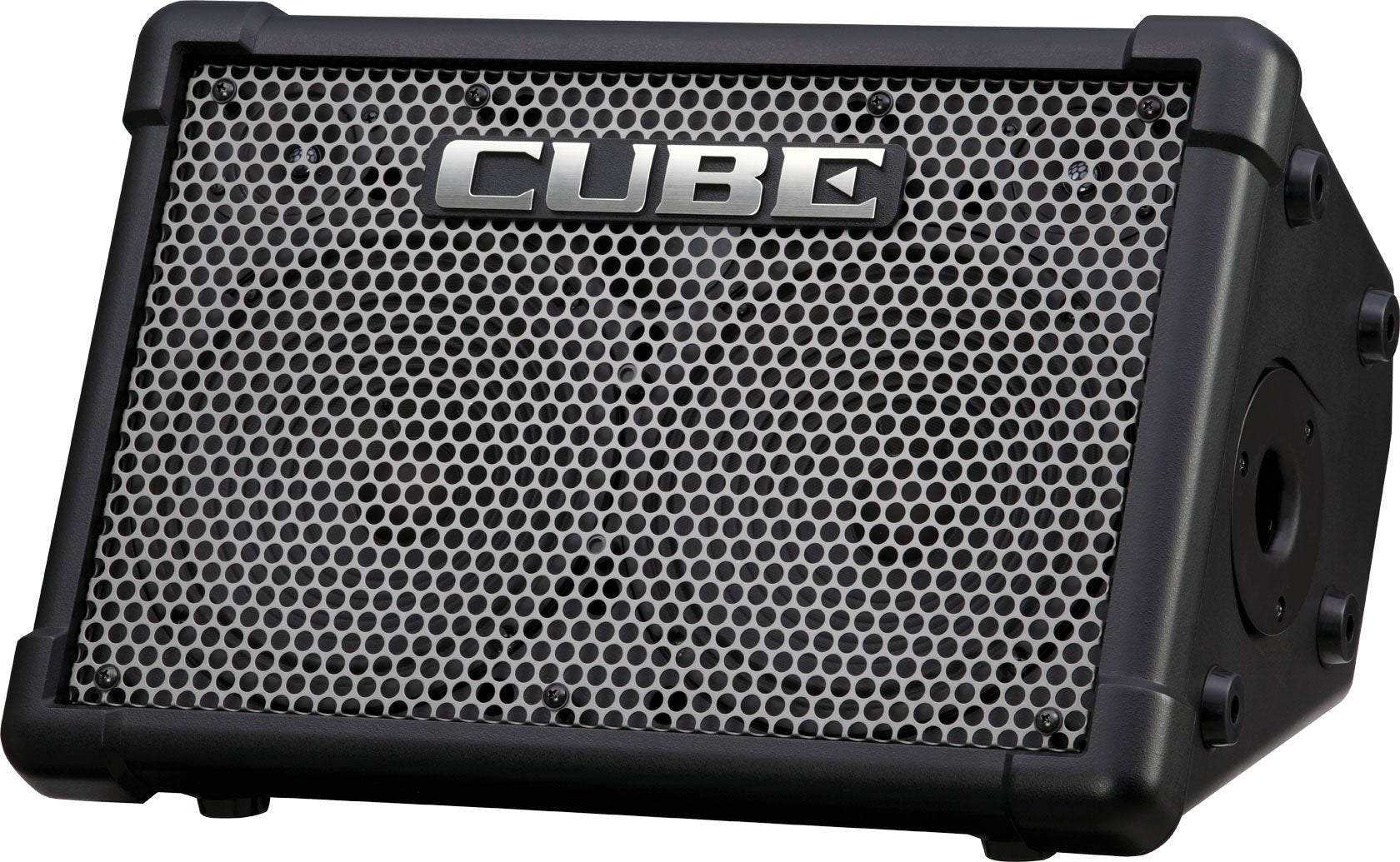

ROLAND Cube Street EX Battery Stereo Amplifier

With its compact size and battery-powered operation, Roland’s CUBE Street was a huge hit among traveling musicians. Now, the new CUBE Street EX infuses the popular mobile amp with a huge performance upgrade that delivers more projection, more channels, and more versatility. 50 big watts of power and a stereo speaker system with dual woofers and tweeters provide clean, punchy sound for larger crowds, while four independent channels offer abundant connections for a variety of mics and instruments. Detailed sound adjustment is available with separate EQ and reverb controls, and great guitar tones are dialed in easily with the onboard COSM amps. Selectable power modes provide up to 20 hours of operation with eight AA batteries, and two CUBE Street EX units can be linked together for more sound coverage if needed. And with i-CUBE LINK, you can even plug in your iPhone or iPad to play backing music and record your performances!

• Innovative new Roland technology provides 50 watts of stereo power from eight AA-size batteries
• Selectable output power modes to optimize battery life for different performing situations (Max: 50 W/5 hours; Normal: 25 W/10 hours; Eco: 10 W/20 hours*)
• Portable, lightweight design (7.4 kg/16 lb. 5 oz.) with durable ABS injection-molded cabinet
• Powerful, full-range stereo sound with dual 8-inch woofers and 2-inch tweeters
• Four independent channels for connecting a variety of mics, instruments, and audio devices
• Two XLR mic inputs allow two vocalists to perform at once
• COSM tones for electric guitar, including Clean, Crunch, and Lead; preamp for acoustic guitar provides clean, natural sound
• Angled back for use as a stage monitor; mounting hole for use with optional ST-A95 Speaker Stand
• Stereo Line Out jacks for connecting to an external sound system when used as a stage monitor
• Stereo Link jacks to connect a second CUBE Street EX for broader sound coverage
• Easy recording into your iPhone/iPad via i-CUBE LINK and free CUBE JAM app
• Optional CB-CS2 Carrying Case made with water-repellent material

  *Approximate battery life under continuous use with rechargeable AA Ni-MH batteries

Impressive Performance Equivalent to a Small PA System

Equipped with 50 watts of stereo power, two eight-inch woofers, and two tweeters, the compact CUBE Street EX effortlessly projects your musical performances with clear, dynamic sound. Thanks to unique new power circuitry developed by Roland, you can enjoy clean headroom and quality sound at a level that’s impossible with any other battery-powered amp. The output power is adjustable in three levels—Max (50 W), Normal (25 W), and Eco (10 W)—allowing you to conserve battery life in situations where you don’t need maximum power. In Eco mode, eight AA Ni-MH batteries will last up to 20 hours! The CUBE Street EX can also be powered with the included AC adapter at gigs where electrical power is readily available.

Multiple Inputs to Support Any Performing Setup

The CUBE Street EX has an onboard mixer with four independent channels, providing ample connectivity options for all kinds performers. Mic/Instrument and Mic/Guitar channels feature XLR/TRS combo jacks to support microphones or devices with 1/4-inch outputs, and each channel is outfitted with its own three-band EQ and reverb effect for discrete sound shaping. The mono/stereo Line In channel is equipped with 1/4-inch jacks, while the Audio In channel provides a stereo 1/8-inch mini jack that also supports i-CUBE LINK. If you fill up all the channels, you can use the rear-panel Aux In jack to connect an additional mono device if needed.

The versatile CUBE Street EX is ideal for all kinds of musical performance situations. Here are just a few:

• Vocal, guitar, synthesizer, and electronic percussion
• Two vocalists, keyboard, and backing tracks
• Electric and acoustic guitar duo with drum machine
• Vocal, guitar, drum machine, and backing tracks

Great Guitar Tones with COSM Amps and Effects

The CUBE Street EX makes it easy for guitarists to plug in and get pro sounds immediately. COSM tones for electric guitar include Lead, Crunch, and Clean, plus an Acoustic Simulator for extra versatility from a single axe. There’s also an AC preamp optimized for acoustic/electric guitar and a convenient built-in tuner. Chorus/delay and reverb effects are available as well, and these can be turned on/off with optional footswitches while performing.

Jam and Record with i-CUBE LINK and CUBE JAM

Roland’s innovative i-CUBE LINK interface lets you incorporate your iPhone, iPad, or iPod touch into your performances with the CUBE Street EX. i-CUBE LINK connects to your device’s audio jack with the included cable, providing two-way communication with your favorite music apps. Roland’s free CUBE JAM app is an ideal partner, allowing you to play along with music tracks from your iTunes library and record the CUBE Street EX’s output right back into the app. CUBE JAM also includes a number of useful functions for practice, jamming, and performing, such as independent pitch/speed adjustment and Center Cancel for minus-one playing and karaoke.

Stand Mounting and Sound Expansion

When placed on the ground, the CUBE Street EX’s angled back provides excellent monitoring for performing in street situations and on larger stages. If you need broader sound coverage for bigger crowds, the amp can be mounted on an optional ST-A95 Speaker Stand. With the handy Stereo Link function, two CUBE Street EX units can be used together to create a powerful stereo PA with up to eight separate inputs.

Light and Durable Design

Like all amps in Roland’s renowned CUBE series, the CUBE Street EX is built to last. It features a high-strength ABS injection-molded body that’s passed rigorous durability testing, ensuring reliability in all kinds of outdoor performing situations. In addition to being tough, the CUBE Street EX is surprisingly light, making the amp a breeze to carry from gig to gig. An optional CB-CS2 Carrying Case provides a convenient shoulder strap and accessory pockets, plus a water-resistant covering that protects the amp from moisture while traveling.

Maximum Power Output

50 W (25 W + 25 W)

Nominal Input Level (1 kHz)

MIC/INSTRUMENT INPUT: -50/-10 dBu
MIC/GUITAR INPUT: -10 dBu
LINE IN: -10 dBu
AUDIO IN (i-CUBE LINK): -10 dBu
AUX IN/STEREO LINK IN: -10 dBu

Nominal Output Level (1 kHz)

LINE OUT (L/MONO, R)/STEREO LINK OUT (L, R): -10 dBu

Speakers

Woofer: 20 cm (8 inches) x 2
Tweeter: 5 cm (2 inches) x 2

Controls

POWER switch
BATTERY CHECK/MUTE button
OUTPUT POWER switch (ECO, NORMAL, MAX)

[MIC/INSTRUMENT]
SELECT switch (MIC, INST)
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
REVERB knob

[MIC/GUITAR]
TUNER button
TYPE switch (A-GUITAR, ACOUSTIC SIM, CLEAN, CRUNCH, LEAD, MIC)
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
CHORUS/DELAY knob (CHORUS, DELAY)
REVERB knob

[AUDIO IN]
VOLUME knob

[LINE IN]
VOLUME knob

BATTERY CHECK/MUTE button

STEREO LINK/LINE OUT switch

Indicators

POWER
BATTERY
BATTERY CHECK/MUTE
TUNER

Connectors

[MIC/INSTRUMENT]
INPUT jack: Combo type (XLR type, 1/4-inch TRS phone), balanced
FOOT SW (REVERB) jack: 1/4-inch TRS phone type

[MIC/GUITAR]
INPUT jack: Combo type (XLR type, 1/4-inch TRS phone), unbalanced
FOOT SW (TIP: CHORUS/DELAY, RING: REVERB) jack: 1/4-inch TRS phone type

[AUDIO IN]
STEREO AUDIO IN (i-CUBE LINK) jack: 4-pole miniature phone type

[LINE IN]
STEREO LINE IN (L/MONO, R) jacks: 1/4-inch phone type

AUX IN/STEREO LINK IN jack: 1/4-inch phone type
LINE OUT (L/MONO, R)/STEREO LINK OUT (L, R) jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
DC IN jack

Power Supply

AC adaptor (DC 13 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8(commercially available)
Rechargeable Amp Power Pack BTY-NIMH/A (Options (sold separately))

Current Draw

730 mA

Expected battery life under continuous use

[OUTPUT POWER switch: MAX (Maximum power output: 50 W)]
Alkaline battery: Approximately 4 hours
Rechargeable Ni-MH battery: Approximately 5 hours (*1)
Rechargeable Amp Power Pack BTY-NIMH/A (Options(sold separately)): Approximately 10 hours

[OUTPUT POWER switch: NORMAL (Maximum power output: 25 W)]
Alkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)
Rechargeable Amp Power Pack BTY-NIMH/A (Options (sold separately)): Approximately 20 hours

[OUTPUT POWER switch: ECO (Maximum power output: 10 W)]
Alkaline battery: Approximately 16 hours
Rechargeable Ni-MH battery: Approximately 20 hours (*1)
Rechargeable Amp Power Pack BTY-NIMH/A (Options (sold separately)): Approximately 40 hours


*1 When using batteries having a capacity of 2,450 mAh(commercially available).
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Owner's manual
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)

Options (sold separately)

Carrying Case: CB-CS2
Footswitch (BOSS FS-5U, BOSS FS-6, BOSS FS-7)
Speaker Stand: ST-A95
Rechargeable Amp Power Pack (BTY-NIMH/A)

Size and Weight

Width

490 mm
19-5/16 inches

Depth

341 mm
13-7/16 inches

Height

305 mm
12-1/16 inches

Weight

7.4 kg
16 lbs. 6 oz.

* 0 dBu = 0.775 Vrms
